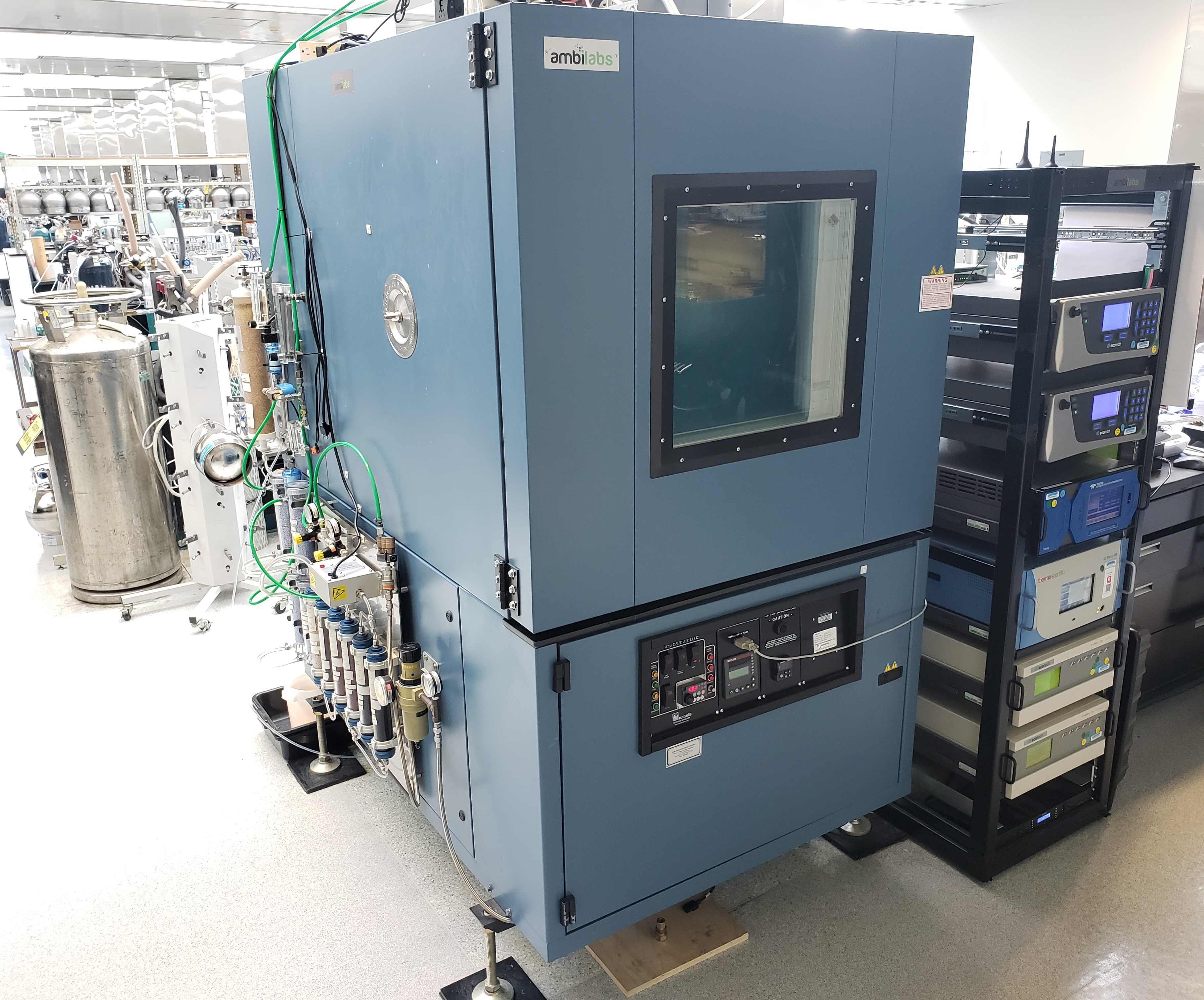

Chamber System #1

Standard Laboratory Evaluations

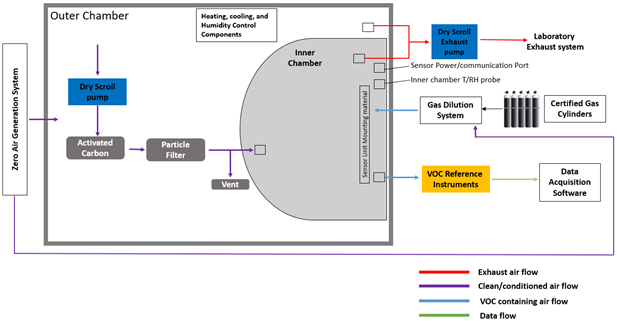

Sensors measuring volatile organic compounds (VOC), which includes air toxics, are evaluated in the AQ-SPEC environmental chamber and challenged with known concentrations of target VOC and gasous interferent pollutants under controlled temperature (T) and relative humidity (RH) levels. These controlled tests are performed in a modified and enhanced environmental chamber (SEnTeC-1) that was previously used for routine evaluations of sensors measuring criteria pollutants. The sensors are evaluated in triplicate to provide better statistical information about the comparability with Best Available Technology (BAT) instrument(s) measuring the same pollutant(s). A VOC Laboratory Testing Protocol has been developed to properly characterize sensor performance and has been published. The SEnTeC-1 chamber was designed and developed in collaboration with American Ecotech (Warren, RI) with software controls developed in collaboration with DR DAS LTD. (Granville, OH). The optimization and implementation of the chamber system was performed by the South Coast AQMD AQ-SPEC staff. The SEnTeC-1 chamber was further optimized for VOC sensor testing to ensure air-tightness of the chamber and safe operation.

Several parameters are measured for evaluating VOC sensor performance under AQ-SPEC including:

  • Coefficient of Determination (R2): correlation between sensor and BAT concentration measurements
  • Intra-model variability: describes how close the measurements from three units of the same sensor type are to each other
  • Accuracy: degree of closeness of sensor concentration measurements to the actual (true) concentration value measured using BAT instrument(s)
  • Precision: variation around the mean of repeated measurements of the same pollutant concentration
  • Co-pollutant interference: positive or negative measurement response caused by a pollutant other than the one being measured
  • Temperature (T) and Relative Humidity (RH) influences: positive or negative measurement response caused by variations in T and RH
  • Mean Absolute Error (MAE): the absolute difference between the sensors and the reference instruments. The larger MAE values, the higher measurement errors as compared to the reference instruments.
  • Mean Bias Error (MBE): the difference between the sensors and the reference instruments. MBE indicates the tendency of the sensors to underestimate (negative MBE values) or overestimate (positive MBE values).
  • Root Mean Square Error (RMSE): another metric to calculate measurement errors.
  • Sensor Detection Limit (SDL): the lowest VOC concentration reported by the sensors with confidence
  • Analysis of Variance (ANOVA): to determine the importance of explanatory variables in explaining sensor responses to VOC concentrations
  • Short Term Sensor Response Change: to investigate the change in sensor response after subjecting the sensors to various climate conditions and interferents.
