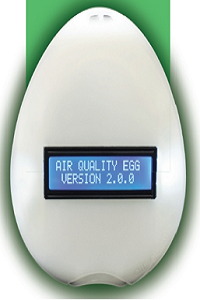

Air Quality Egg (v.2) CO-NO2

General Description

The Air Quality Egg (version 2) is a sensor system designed to collect readings of carbon monoxide (CO) in ppm and nitrogen dioxide (NO2) in ppb, either indoors or outdoors. The sensor system also monitors temperature and humidity.

Principle of Operation

The Air Quality Egg v.2 by WickedDevice carries electrochemical gaseous sensors that have been previously calibrated at the sensor factory (Spec Sensors).

Features

  • Dimensions: 140 x 140 x 85 (mm)
  • Weight: 7.2 oz
  • Battery: No
  • Power supply: 5v USB or Micro-USB (> 500 mA) phone charger
  • Sampling mechanism: Fan
  • Environmental operating conditions: -20 to 40 oC and 0 to 100 % RH
  • Sensor response time: Maximum of 30 seconds
  • Data readings: LCD screen
  • Data logging: WiFi and data is published to airqualityegg.com and also toopensensors.io.
  • Data transfer frequency: 5 seconds
  • Data visualization: Yes (website)
  • Typical max sensor response time: 30 seconds
  • Transmission range: 70 meters
  • Weatherproof: No

Applications

   •  Indoor air monitoring
   •  Outdoor air monitoring
