APIS

General Description

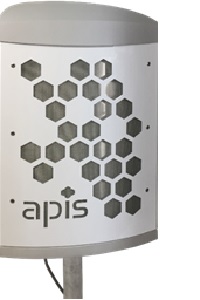

The Apis monitoring station provides real-time measurements of carbon monoxide (0-20 ppm), nitrogen oxide (0-20 ppm), nitrogen dioxide (0-20 ppm), nitrogen oxides (0-20 ppm), and ozone (0-20 ppm) concentrations. The device also provides relative humidity, air temperature, dewpoint temperature, and barometric pressure measurements. Data is sent to the Apis cloud platform using an internal modem and cellular connection; users can view and download historical data on the Apis cloud platform with an active subscription.

Principle of Operation

The Apis monitoring station uses Alphasense gas sensitive electrochemical (GSE) sensors to measure gas concentrations.

Features

  • Dimensions: 9 x 9 x 16 (L x W x H) inches
  • Weight: 9 lb (4 kg)
  • Battery: Battery Backup and Solar Options
  • Battery Life: N/A
  • Screen Size: N/A
  • Power Supply: Yes (110 VAC, 7-35 W) DC Option 12-24V @ 5-25W
  • Sensor Lifetime: <2 years
  • Clock Function: No
  • Sampling Mechanism: Sampling Pump @ 0.5 LPM, internal sensor manifold
  • Operating Temperature: -30 to +60°C
  • Internal data logging: Yes
  • PC data logging: No
  • Communications: Cellular
  • Data Download: Yes, through online Apis cloud data platform
  • Data Visualization: Yes, through online Apis cloud data platform
  • Weatherproof: Yes
  • Applications
  • Outdoor air quality
  • Long-term monitoring in locations with cellular coverage
  • Carbon monoxide, nitrogen oxides, and ozone exposure in industrial areas
  • Workplace exposure

    Developer's product webpage
