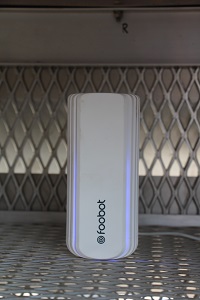

Foobot

General Description

The Foobot sensor is a handheld device that provides real-time measurements of fine particles (PM2.5), total VOC, Carbon Monoxide (CO), Carbon Dioxide (CO2), temperature and humidity.

Principle of Operation

Foobot uses light-scattering to measure particles smaller than 2.5 micrometers in aerodynamic diameter. It converts the signal to a PM2.5 mass concentration, sends the data to a server via WiFi and displays the readings on a website and a cell phone application.

Features

  • Dimensions: 172 (H) x 71 (D) (mm)
  • Weight: 475 g
  • Power supply: 5V USB cable
  • Sensor lifetime: N/A
  • Clock function: no
  • Sampling mechanism: fan
  • Response time: 5 min
  • Environmental operating conditions: 0 °C – 50 °C, < 90% RH
  • Internal data logging: no
  • Data communication and logging: data uploaded through WiFi to a cloud
  • Data visualization: iPhone and Android apps
  • Weatherproof: No

Applications

  • Indoor Air Quality

 Manufacturer's product webpage
