Magnasci SRL - uRADMonitor A3

General Description

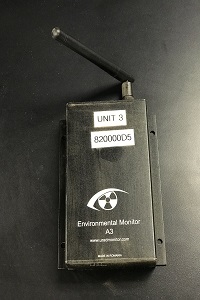

The Magnasci SRL uRADMonitor A3 (HW 105) is a sensor for environmental monitoring that measures 8 air quality parameters including PM2.5, carbon dioxide (CO2), volatile organic compounds (VOC), formaldehyde, temperature, relative humidity, barometric pressure and Gamma/x-ray radiation.

Principle of Operation

The uRADMonitor A3 sensor uses laser scattering sensor to detect particulate matter; a nondispersive infrared sensor to measure CO2; an electrochemical sensor for formaldehyde, a Bosch BME 680 sensor for temperature, relative humidity, barometric pressure and VOC; and a S129BG Geiger Tube to detect gamma and x-ray radiation.

Features

  • Dimensions: 110 (L) x 65 (W) x 25 (D) (mm)
  • Weight: 170 g
  • Battery: No
  • Power supply: 6 - 28 V
  • Sensor lifetime: N/A
  • Clock function: No
  • Sampling mechanism: Fan
  • Environmental operating conditions: Temp: -40 to 85 °C, RH: 0 to 100 %
  • Internal data logging: No
  • Data connection/storage: cloud API interface
  • Connectivity: WiFi (optional: Ethernet, GSM, LoraWAN)
  • Weatherproof: No

Applications

  • Home monitoring
  • Office and production space monitoring
  • CBRN monitoring
  • Smart cities
  • Internet of things



Manufacturer's product webpage
