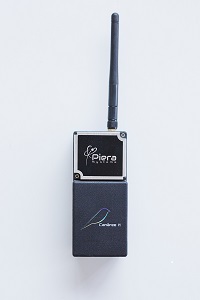

Piera Systems - Canāree R1

General Description

The Piera Systems Canāree R1 sensor is a standalone air quality monitor that measures particulate matter (PM1, PM2.5 and PM10) in real-time; with optional addition of temperature and relative humidity sensors. The data is transmitted via WiFi, Bluetooth or ethernet to the cloud and data can be visualized on the SenseiAQ dashboard. SenseiAQ logs all data to the cloud for advance analytics and integration with existing Building Management System software.

Principle of Operation

The Piera Systems Canāree R1 uses a Piera IPS-7100 particle sensor that utilize a photon-counting method to measure PM in seven different size bins (PM0.1, 0.3, 0.5, 1., 2.5, 5.0 and 10). The sensor reports particle counts, size and mass concentration.

Features

  • Dimensions: 11 (H) x 5 (W)  x 5 (D) cm
  • Weight: 200 g
  • Power supply: 5.5 VDC via USB
  • Battery: N/A
  • Battery life: N/A
  • Sensor lifetime: N/A
  • Clock function: No
  • Sampling mechanism: Fan
  • Environmental operating conditions: -10 to +60°C, 0 to 95% RH
  • Internal data logging: No
  • Data communications: Bluetooth, Wi-Fi, and Ethernet
  • Data logging and retrieval: data sent to cloud; API access available
  • Weatherproof: No, indoor sensor

Applications

  • Indoor air quality monitoring
  • Construction dust monitoring
  • Hospital air quality monitoring
  • Schools vape/smoke alerts
  • Office and industries air quality monitoring
  • HVAC integration

Manufacturer’s product webpage
