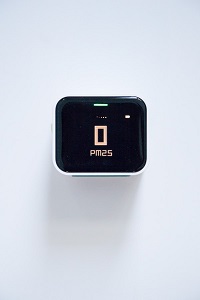

Qingping - Air Monitor Lite

General Description

The Qingping Air Monitor Lite is an air quality monitoring device that provides real-time measurements of PM2.5 and PM10 mass concentrations, CO2 concentrations and environmental parameters such as temperature and relative humidity. Historical data can be visualized on the app and can be sent to email as a .csv file via app.

Principle of Operation

The Qingping Air Monitor Lite uses a Grandway PM7500 as the PM raw sensor. The measurement principle is based on laser scattering. It converts the signal to particle mass concentration using proprietary algorithms.


  • Dimensions: 63.6 (H) x 46 (W) x 54.6 (D) mm
  • Weight: 143 g
  • Power supply: Yes, USB-C cable, 5V/1A
  • Battery: Yes, 2000mAh Lithium
  • Clock function: Yes
  • Sampling mechanism: fan
  • Environmental operating conditions: 0 - 40°C and 0 - 95% RH
  • Internal data logging: N/A
  • Data communication: WiFi and bluetooth
  • Data logging/retrieval: Data is retrieved by using app to send a .csv file to email
  • Weatherproof: No


  • Indoor air quality monitoring

Developer's Product Webpage
