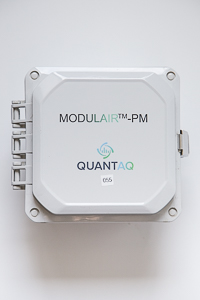

QuantAQ - MODULAIR-PM

General Description

The QuantAQ MODULAIR-PM sensor is an air quality monitoring device that provides real-time measurements of PM1.0, PM2.5 and PM­10 mass concentrations and environmental parameters such as temperature and relative humidity. Data can be visualized and accessed on the QuantAQ dashboard.

Principle of Operation

The QuantAQ MODULAIR-PM sensors use a Plantower PMS5003 and an Alphasense OPC-N3 particle sensor. The particle counts across a wide range of particle diameters are converted to PM1.0, PM2.5 and PM10 mass concentrations in μg/m3 using proprietary algorithms.

Features

  • Dimensions: 6.59 (L) x 6.59 (W) x 5.11 (H) in
  • Weight: 4 lbs
  • Power supply: Yes, 5V, 2A (supply); 250mA average consumption
  • Battery: Solar/battery (optional)
  • Clock function: Internal real-time clock
  • Sampling mechanism: fan
  • Environmental operating conditions: -20 – 60 °C and 5 - 95% RH, non-condensing
  • Internal data logging: Yes, 16 GB card (2 years on board storage)
  • Data communication: 2G/3G/LTE cellular
  • Data logging/retrieval: Data is sent to cloud and can be downloaded via the QuantAQ dashboard
  • Weatherproof: Yes, IP68

Applications

  • Ambient air quality
  • Outdoor air quality
  • Indoor air quality
  • Fence line monitoring
  • Industrial air monitoring
