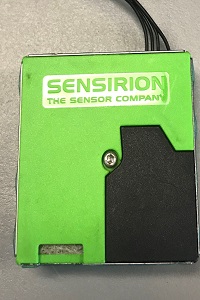

Sensirion - SPS30 Eval Kit

General Description

The Sensirion SPS30 Evaluation Kit uses proprietary contamination-resistance technology and long-lasting components to provide real-time measurements of PM1.0, PM2.5, PM4.0 and PM10 mass concentrations. It also measures PM0.5, PM1.0, PM2.5, PM4.0 and PM10 number concentrations.


Principle of Operation

The Sensirion SPS30 Evaluation Kit’s measurement principle is based on laser scattering; using advanced particle size binning, the sensors count particles in sizes 0.5, 1.0, 2.5, 4.0 and 10 µm. these particle counts are processed using Sensirion’s advanced algorithms to calculate PM1.0, PM2.5, PM4.0 and PM10 mass concentrations.

Features

·          Dimensions: 40.6 x 40.6 x 12.2 mm

·          Weight: 26 g

·          Power supply: Yes

·          Sensor lifetime: > 8 years while operating continuously for 24 hours/day

·          Clock function: no

·          Sampling mechanism: Fan

·          Environmental operating conditions: -10 to 60 °C; 20 to 80% RH

·          Internal data logging: No

·          Data communication and logging: USB, data can be retrieved via Sensirion Control Center Software

·          Weatherproof: No

Applications

·         Air quality and environmental monitors

·         Air conditioners

·         Air Purifiers

·         HVAC equipment

·         Demand-controlled ventilation systems

·         Smart home and IoT devices



Developer's Product Webpage
