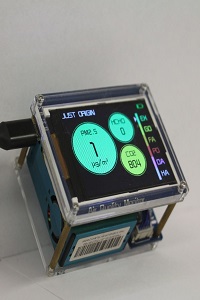

SainSmart - Pure Morning P3

General Description

The SainSmart Pure Morning P3 measures PM2.5, formaldehyde (HCHO), carbon dioxide (CO2), ambient air temperature (in degrees C) and relative humidity (%).The PM sensor is an optical particle counter.

Principle of Operation

The SainSmart PM sensor is a Plantower PMS5003 laser particle counter where laser beams detect particles going past by their reflectivity and are processed by the sensor using a complex algorithm to calculate the PM2.5 mass in ug/m3.

Features

  • Dimensions: N/A
  • Weight: N/A
  • Battery: No
  • Power supply: Yes (5V/1A mobilecharger/portable power/computer USB)
  • Sensor lifetime: N/A
  • Clock function: N/A
  • Sampling mechanism: Fan
  • Environmental operating conditions: N/A
  • Internal data logging: No
  • Data communication and logging: ESP8266 chip runs code developed using Arduino to upload data to a cloud
  • Data visualization: No (only LCD display of real-time data on unit)
  • Weatherproof: No

Applications

  • Indoor Air Quality
  • Outdoor Air Quality
