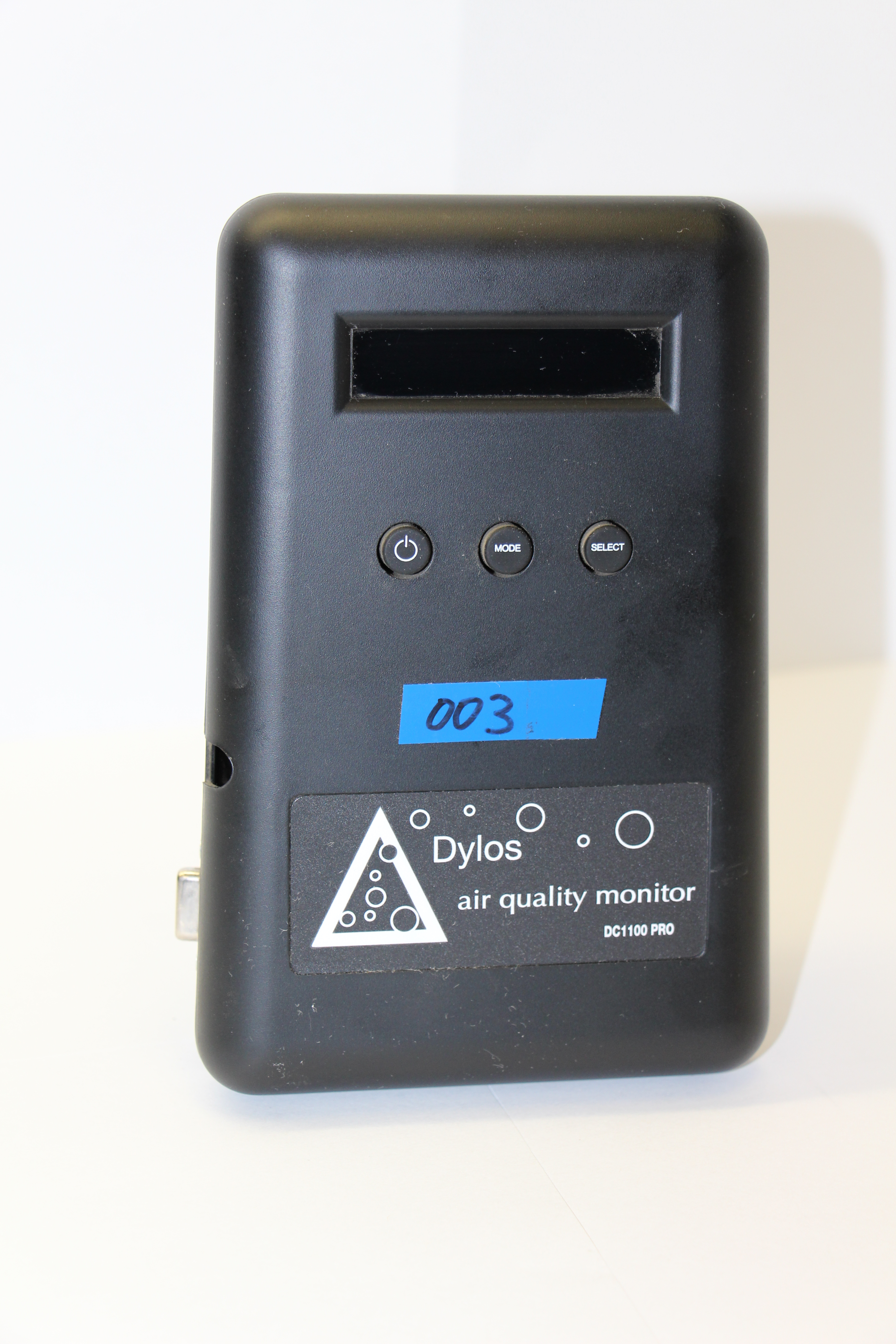

Dylos - DC1100 PRO

General Description

The Dylos DC1100 Pro Air Quality Monitor with PC Interface is a particle counter that measures particles in two size ranges: 500 nanometers and above and 2.5 micrometers and above. The Pro series comes with the added PC interface.

Principle of Operation

A Laser Particle Counter with 2 size ranges (>0.5 & >2.5 microns) - small (bacteria, mold, etc) and large (pollen, etc.). DC1100 Pro has increased lower sensitivity - detecting particles down to 0.5 micron.

Features

  • Dimensions: 125 x 90 x 185 mm
  • Weight: 1.2 lbs
  • Battery: No
  • Power supply: Yes (120V 60Hz to 9VDC 500mA)
  • Sensor lifetime:N/A
  • Clock function: No (No internal clock, must be connected to computer for time/date stamp)
  • Sampling mechanism: Fan
  • Environmental operating conditions: N/A
  • Internal data logging: Yes (Up to 30 days, but not with time/date stamp)
  • PC data logging: Yes (USB to RS232 cable with DylosLogger 1.6 software)
  • Communications: RS232 port
  • Weatherproof: No

Applications

  • Indoor Air Quality
  • Outdoor/Ambient Air


Manufacturer's product webpage
