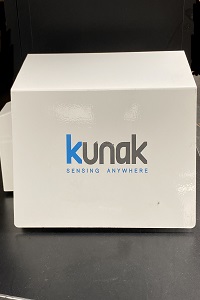

Kunak - Air A10

General Description

The Kunak Air A10 sensor is an air quality monitor that measures gases including carbon monoxide (CO), ozone (O3), nitrogen oxides (NO, NO2, NOx) and optional sulfur dioxide (SO2) and hydrogen sulfide (H2S) as well as particulate matter (PM1.0, PM2.5 and PM10). The sensor also measures temperature, relative humidity, pressure and wind.

Principle of Operation

The Kunak Air A10 sensor uses electrochemical sensors to measure gases and laser particle counter to detect particles (particle sensor: AS OPC N3). Count measurements are converted into mass concentrations of PM1.0, PM2.5 & PM10 using embedded algorithms.

Features

  • Dimensions: 122 x 202 x 90 (H) (mm)
  • Weight: < 1.5 kg
  • Battery: yes
  • Power supply: 5 - 17 V DC; solar panel
  • Sensor lifetime: > 12 months
  • Clock function: No
  • Sampling mechanism: Fan
  • Environmental operating conditions: -20 to 50°C Temp
  • Communication: GPRS, WiFi, RS232, Ethernet
  • Data logging/retrieval: real time data is sent wirelessly to Kunak Air Cloud, a web platform for data storage, processing, analysis and export
  • Sampling period: 10-sec to 24-hr
  • Weatherproof: yes

Applications

  • Air Quality
  • Smart Cities
  • Smart sustainable traffic
  • Industrial perimeters and emissions
  • Mobile monitor
  • Research and consultancy
