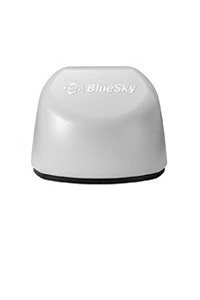

TSI - BlueSky

General Description

The TSI BlueSky sensor provides real-time measurements of PM2.5 and PM10 mass concentrations, temperature and relative humidity.

Principle of Operation

The TSI BlueSky sensor uses a Sensirion SPS30 light scattering single particle counter. The measurement principle is based on laser scattering using advanced particle size binning to covert particle number to mass concentrations through proprietary algorithms.

Features

  • Dimensions: 6 (H) x 5.5 (W) x 4.5 (D) in
  • Weight: 0.35 lb
  • Power supply: Yes, IP68 rated 5V
  • Battery: No
  • Sensor lifetime: N/A
  • Clock function: No
  • Sampling mechanism: Fan
  • Environmental operating conditions:- 10 - 60°C, 0 - 95% RH, non-condensing
  • Internal data logging: Yes
  • Data communication and logging: Data can be viewed and downloaded through TSI BlueSky's dashboard
  • Weather proof: Enclosure is designed to be water resistant to rain and spray

Applications

  • Ambient air quality monitoring
  • Indoor air quality monitoring
  • Smart cities
  • Hot spot detection
  • Community monitoring programs

Manufacturer's product webpage
