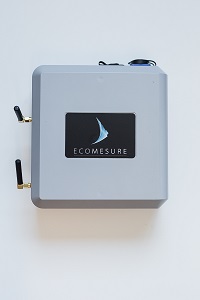

Ecomesure - EcomSmart

General Description

The Ecomesure EcomSmart is a smart/customizable air quality monitor that provides real-time measurements of gases (i.e. CO, ozone, NO/NO2, SO2, H2S, NH3, HCl, Cl2, CH2O etc. available upon request) and PM (PM1.0, PM2.5 PM4.0, PM­10, TSP) mass concentrations. Data can be recorded real-time and transmitted to the Ecomesure platform wirelessly. Data can be accessed on the Ecomesure platform.

Principle of Operation

The Ecomesure EcomSmart sensor uses electrochemical sensors to measure gaseous pollutants and uses the Tera Sensor NextPM as a raw PM sensor with heater function. The measurement principle of the particulate matter sensor is based on laser light scattering to convert particle number in different sizes to mass concentrations through its proprietary algorithm.

Features

  • Dimensions: 210 (L) x 200 (W) x 90 (H) mm
  • Weight: 2 kg
  • Power supply: Yes, IP67 power supply (5VDC and 12VDC) 2 A max
  • Battery: Yes, 8 hours backup use optional
  • Clock function: No
  • Sampling mechanism: fan
  • Environmental operating conditions: -20 - 40°C and 0 - 95% RH, noncondensing
  • Internal data logging: yes
  • Data communication: Cellular 3G/4G, ethernet, or Wifi
  • Data logging/retrieval: Data is sent wireless to the Ecomesure Platform where they can be assessed
  • Weatherproof: Yes

Applications

  • Smart Cities
  • Industrial Sites monitoring
  • Refineries monitoring
  • Warehouses monitoring
  • Construction site monitoring
  • Roadside monitoring
