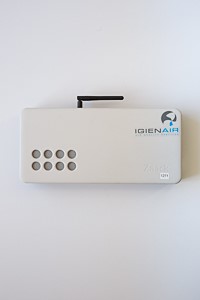

Igienair Zaack AQI

General Description

The Igienair Zaack AQI is a multi-pollutant air quality monitoring station that provides real-time measurements of gases (CO, CO2, NO2, O3 and TVOC) and particulate matter (PM1.0, PM2.5 and PM­10) mass concentrations, and environmental parameters such as pressure, temperature and relative humidity. Data can be visualized and accessed on the dashboard or mobile application. Zaack provides full services of the sensors including installation, maintenance, calibration and data storage/access.

Principle of Operation

The Igienair Zaack AQI sensors use electrochemical sensors paired with specific filters for gas measurements. The measurement principle of the particulate matter sensor is based on laser scattering to convert particle number in different size bins to mass concentrations through its proprietary algorithm.

Features

  • Dimensions: 300 (L) x 140 (W) x 54 (H) mm
  • Weight: 0.8 kg
  • Power supply: Yes, 230V AC/ 7.5V DC, 5W max
  • Battery: No
  • Clock function: No
  • Sampling mechanism: fan
  • Environmental operating conditions: -10 - 40°C and 15 - 85% RH
  • Internal data logging: No
  • Data communication: WiFi, Ethernet cable, 4G cellular
  • Data logging/retrieval: data can be accessed and downloaded via dashboard
  • Weatherproof: No

Applications

  • Indoor air quality
  • Business/office solutions
