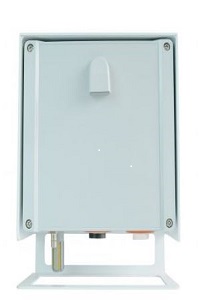

Aeroqual AQY v0.5 (Discontinued Version)

General Description

The Aeroqual AQY (v.0.5) is a an air quality monitoring instrument designed to provide real-time air quality data of ozone (O3: 0-200 ppb), nitrogen dioxide (NO2: 0-500 ppb), PM2.5 (0-1000 μg/m3), temperature and relative humidity. The AQY pushes data to the Aeroqual Cloud server and authorized users can access data via a web browser on an internet-connected device.

Principle of Operation

This device incorporates Gas Sensitive Semiconductor (GSS) and Gas Sensitive Electrochemical (GSE) sensors to measure gases and a Laser Particle Counter (LPC) which uses a light scattering method to size and count particles and then convert them to a mass fraction.

Features

  • Dimensions: 215 x 170 x 125 (H x W x L) mm
  • Weight: <1 kg
  • Power supply: 12 VDC plug pack (Us plug): 24W
  • Enclosure: IP33 enclosure with integrated aluminum solar shield armor
  • PM Sampling system: Inlet: 4 cm aluminum inlet; mechanism: 5V DC fan
  • Gas sampling system: Inlet: Teflon, stainless steel; mechanism: 5V DC fan
  • Data logging: 16 GB Hard Drive
  • Communications: WiFi (Optional: cellular)
  • Software: Accessed via web browser, runs on cloud server
  • Environmental operating conditions: 0 to 40 degrees C
  • Weatherproof: Yes
Applications
  • Mapping pollution sources
  • Roadside monitoring networks
  • Validating air quality models
  • Air quality sensitive industries e.g. data centers
  • Building management systems
  • Community exposure studies
  • Protecting health and safety of students
  • Public information and protection
  • Smart city grid monitoring
